Mader Minibox Set Top Box

Mader Minibox STB has been used for OEM of TV manufactory. Many TV manufactories have installed Mader Minibox STB on the TV backside.So ordinary TV has VOD function.The TV with VOD function has been used in hotel,bus,etc.

The feature of Mader Minibox STB as follow:

Minibox shape,easy to be installed on the TV backside(or inside).
Two LAN ports.
VGA/S-Video/Audio output
5V DC
IR port
Supports remote control unit and control pannel.
CPU:32bit 90Mhz
2M Flash Memory
OS: RTOS Nucleus
Supports Mpeg1/Mpeg2
Supports multi-language audio, multi-language subtitle.
Supports Mader VOD System.

The picture of Mader Minibox STB as follow:

Size: 12cm x 8cm x 2.5cm

The backside of Mader Minibox STB as follow:

The picture of remote control unit as follow:

STB remote control unit can learn codes from TV remote control unit,so STB remote control unit can control TV and STB at the same time.

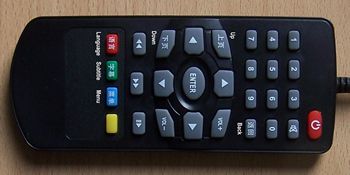

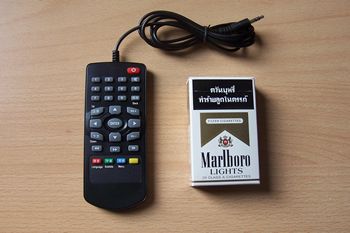

The picture of control panel as follow:
