 Mader
Mini IPTV System
Mader Mini IPTV System is a total solution for small IPTV
project, including Mader Management Server, Mader Encoder
Workstation (or Encoder Server), Mader VOD Server, Mader
IPTV STB, Mader Mini IPTV System Software, etc. It especially
fits for hotel, hospital, residential block IPTV applications.

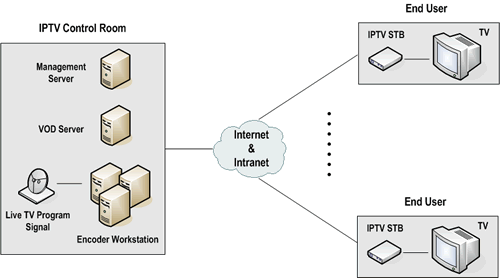

Mader Mini IPTV System Simple Diagram

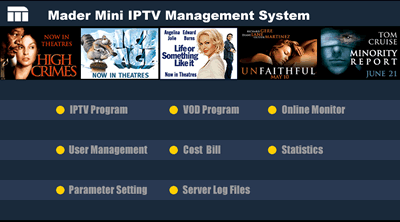

Management Functions
Mader Mini IPTV System can provide powerful management
functions, just like follow:
Mader Encoder Workstation and Encoder Server
Usually, Encoder Server is the main part of
investment for IPTV Operation Center Equipment. For example,
the IPTV service provider should set up many Encoder Servers
to fit for 50-100 Live TV Programs broadcasting in IPTV
project. The good news is that Mader Mini IPTV System no
need the special and expensive server as Encoder Server,
even the normal PC can be Encoder Workstation. The normal
PC with XP/Vista/Windows 7 OS has been bound with Mader
IPTV Live Broadcast Module, and then this normal PC will
become an Encoder Workstation. It is low cost encoder equipment
for Mader IPTV System solution.

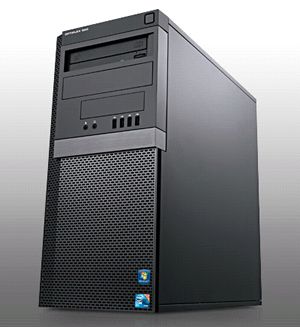

Mader Encoder Workstation
Mader Encoder Server
Mader HD IPTV STB
Mader HD IPTV STB is a very important client equipment for
Mader IPTV System. It provides many functions such as IPTV
Programs, VOD, Access Internet, Game, Cost Bill, etc. Of
course, it supports HD video format and Flash.
Features:
CPU:
Telechips TCC 8900/500MHz
OS:
Supports Windows CE 6.0/Linux
RAM:
256M DDR2 SDRAM
ROM:
1GB Nand Flash
Ethernet:
100M Ethernet Port * 2 (with Switch function)
Video
Output: VGA/HDMI/Composite (AV)
Input:
USB * 4
IR
Port: IR Port/Internal IR Receiver
Extended
SD Storage: SD Port
Power:
5V 2A
Size:
130mm * 100mm * 27mm
Supports
Video Format: Flash(swf), WMV, FLV, RM/RMVB, MKV, MPEG 1/2/4,
Divx, Xvid, H.264
Supports
Audio Format: MP3, WMA, WAV, OGG, AAC, LPCM, FLAC, AC3
Supports
HD Format: 720P, 1080I, 1080P
Supports
Protocol: MMS, HTTP, RTSP, UDP, Multicast, P2P (Optional)
Access
Internet: Supports IE Browser
GAME:
Supports more than 1000 games

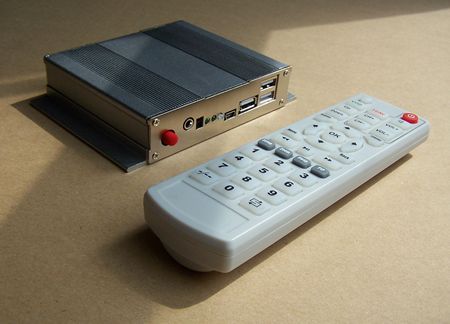

The picture of Mader HD IPTV STB:

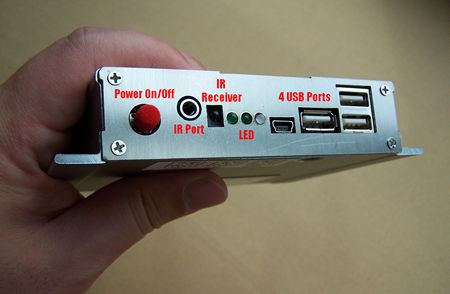

Mader HD IPTV STB Front Side

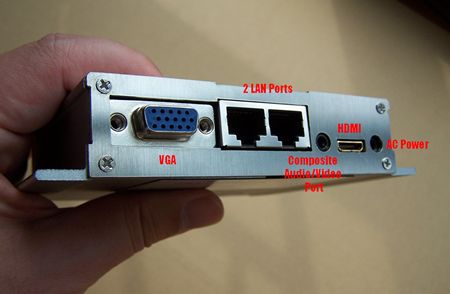

Mader HD IPTV STB Back Side
Functions:

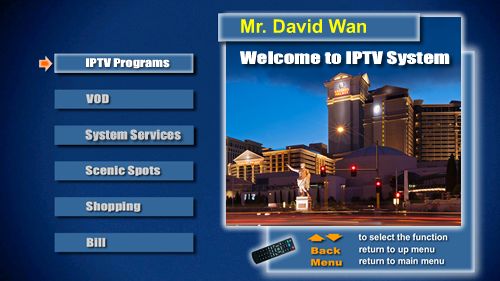

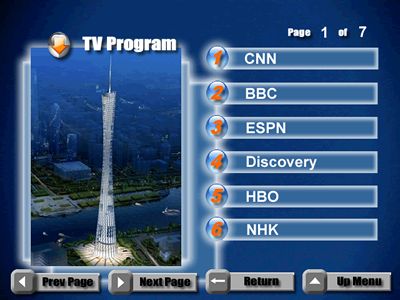

Live IPTV Programs

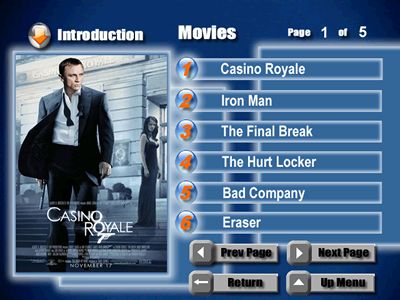

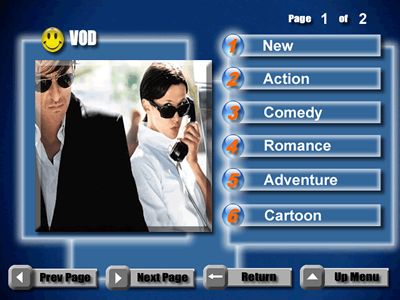

VOD

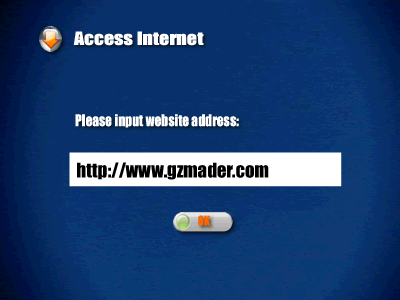

Access Internet

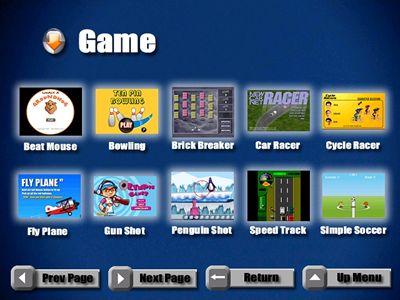

Game
STB Peripherals:
Remote Control
The Remote Control of Mader HD IPTV STB can
learn the codes from other equipment (TV Remote Control,
etc.). So we can use single remote control to operate IPTV
STB and TV at the same time. It is very useful function
for the user.

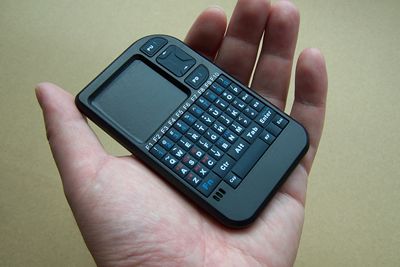

Mini Wireless Remote Keyboard (with mouse
function)
Mini Wireless Remote Keyboard (with mouse
function) is the optional equipment for Mader HD IPTV STB.
The working frequency is 2.4GMhz, and the maximal working
distance is 10M. If the user want to access Internet or
playing game, the Mini Wireless Remote Keyboard (with mouse
function) is very important equipment for Mader HD IPTV
STB. Mader can provide 3 kinds Mini Wireless Keyboard, the
details as follow:
Mini Wireless keyboard (Model-01)

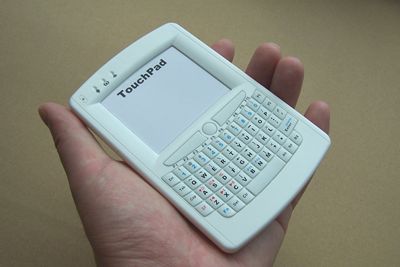

Mini Wireless keyboard (Model-02)
Mini Wireless keyboard (Model-03)
|
