Mader IPTV System is a total solution for small and medium
IPTV project, including Mader Management Server, Mader Transfer
Server, Mader Encoder Server, Mader VOD Server, Mader IPTV
STB, Mader IPTV System Software, etc.

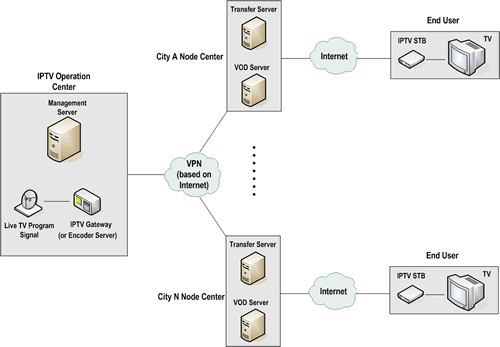

Mader IPTV System Simple Diagram

The further explanation for above diagram as follow:
Mader IPTV System structure has two Levels. Level 1 is IPTV
Operation Center, Level 2 is City Node Center. There are
Management Server (with Web Server and Database Server functions)
and Encoder Servers (converting Live TV Program Signal to
IP video stream) in IPTV Operation Center. The City Node
Center has Transfer Server and VOD Server.
Transfer Server has been used for transferring the IP video
stream to the end user after receiving the IP video stream
from Encoder Server. The end user connects with Transfer
Server directly, no need to connect with Encoder Server.
Because Encoder Server must deal with capturing Live TV
Program signal and compressing it to IP video stream at
the same time, the Transfer Server CPU occupation rate is
very high, it has not enough resource to provide service
for the end user directly. Another important thing is that
only single IP video stream has been transferred between
Transfer Server and Encoder Server, it means saving a lot
of broadband occupation for IPTV system backbone network.
Transfer Server is a very important design for IPTV system
extending, for example, if you want to provide Live IPTV
Program service in a new city, just setting up Transfer
Server in the new city node center, no need to set up many
Encoder Servers again. It is a very fast, easy and low cost
solution for IPTV system extending.
VOD Server has been located at City Node Center, it is good
for reducing the broadband occupation between IPTV Operation
Center and City Node Center, it is good for VOD Server to
provide fast and stable VOD service to the end user.
Management Functions

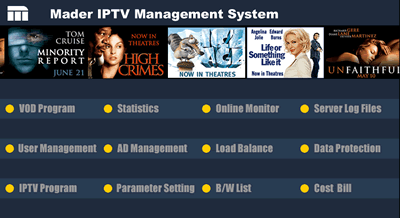

Mader IPTV System can provide powerful management functions,
just like follow picture:

Mader IPTV System supports Hourly User, Pay
Per View User, Pay Per Month User, Prepaid User, etc.

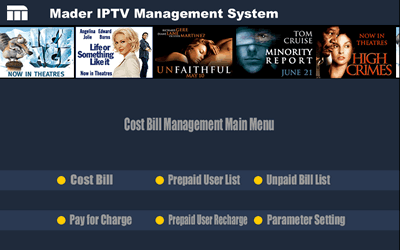

Mader IPTV System can provide powerful Cost
Bill Management function.

Mader HD IPTV STB
Mader HD IPTV STB is a very important client equipment for
Mader IPTV System. It provides many functions such as IPTV
Programs, VOD, Access Internet, Game, Cost Bill, etc. Of
course, it supports HD video format and Flash.
Features:
CPU:
Telechips TCC 8900/500MHz
OS:
Supports Windows CE 6.0/Linux
RAM:
256M DDR2 SDRAM
ROM:
1GB Nand Flash
Ethernet:
100M Ethernet Port * 2 (with Switch function)
Video
Output: VGA/HDMI/Composite (AV)
Input:
USB * 4
IR
Port: IR Port/Internal IR Receiver
Extended
SD Storage: SD Port
Power:
5V 2A
Size:
130mm * 100mm * 27mm
Supports
Video Format: Flash(swf), WMV, FLV, RM/RMVB, MKV, MPEG 1/2/4,
Divx, Xvid, H.264
Supports
Audio Format: MP3, WMA, WAV, OGG, AAC, LPCM, FLAC, AC3
Supports
HD Format: 720P, 1080I, 1080P
Supports
Protocol: MMS, HTTP, RTSP, UDP, Multicast, P2P (Optional)
Access
Internet: Supports IE Browser
GAME:
Supports more than 1000 games
The picture of Mader HD IPTV STB:

Mader HD IPTV STB Front Side
Mader HD IPTV STB Back Side
Functions:
Live IPTV Programs
VOD
Access Internet

Game

STB Peripherals:
Remote Control
The Remote Control of Mader HD IPTV STB can
learn the codes from other equipment (TV Remote Control,
etc.). So we can use single remote control to operate IPTV
STB and TV at the same time. It is very useful function
for the user.

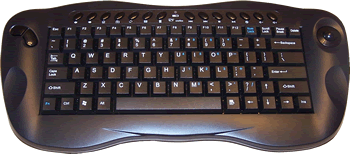

Mini Wireless Remote Keyboard (with mouse
function)
Mini Wireless Remote Keyboard (with mouse
function) is the optional equipment for Mader HD IPTV STB.
The working frequency is 2.4GMhz, and the maximal working
distance is 10M. If the user want to access Internet or
playing game, the Mini Wireless Remote Keyboard (with mouse
function) is very important equipment for Mader HD IPTV
STB. Mader can provide 3 kinds Mini Wireless Keyboard, the
details as follow:
Mini Wireless keyboard (Model-01)
Mini Wireless keyboard (Model-02)
Mini Wireless keyboard (Model-03)
|
