Mader HD IPTV STB

Mader HD IPTV STB supports Live IPTV Programs, VOD, Cost Bill, Access Internet, Game, etc.

Mader HD IPTV STB uses Telechips TCC 8900 chips as CPU. It supports High Definition Video format (720P/1080i/1080P) and Flash, such as WMV, FLV, RM/RMVB, MKV, Mpeg1/2/4, Divx, Xvid, H.264, SWF, etc. Mader HD IPTV STB is a powerful HD IPTV client equipment in the market.

Features:

CPU: Telechips TCC 8900/720MHz
OS: Supports Windows CE 6.0/Linux
RAM: 256M DDR2 SDRAM
ROM: 1GB Nand Flash
Ethernet: 100M Ethernet Port * 2 (with Switch function)
Video Output: VGA/HDMI/Composite (AV)
Input: USB * 4
IR Port: IR Port/Internal IR Receiver
Extended SD Storage: SD Port
Power: 5V 2A
Size: 130mm * 100mm * 27mm
Supports Video Format: Flash(swf), WMV, FLV, RM/RMVB, MKV, MPEG 1/2/4, Divx, Xvid, H.264
Supports Audio Format: MP3, WMA, WAV, OGG, AAC, LPCM, FLAC, AC3
Supports HD Format: 720P, 1080I, 1080P
Supports Protocol: MMS, HTTP, RTSP, UDP, Multicast, P2P (Optional)
Access Internet: Supports IE Browser
GAME: Supports more than 1000 games

The picture of Mader HD IPTV STB:

Mader HD IPTV STB Front Side

Mader HD IPTV STB Back Side

Functions:

Live IPTV Programs

VOD

Access Internet

Game

STB Peripherals:

Remote Control

The Remote Control of Mader HD IPTV STB can learn the codes from other equipment (TV Remote Control, etc.). So we can use single remote control to operate IPTV STB and TV at the same time. It is very useful function for the user.

Mini Wireless Remote Keyboard (with mouse function)

Mini Wireless Remote Keyboard (with mouse function) is the optional equipment for Mader HD IPTV STB. The working frequency is 2.4GMhz, and the maximal working distance is 10M. If the user want to access Internet or playing game, the Mini Wireless Remote Keyboard (with mouse function) is very important equipment for Mader HD IPTV STB. We can provide 3 kinds Mini Wireless Keyboard, the details as follow pictures.

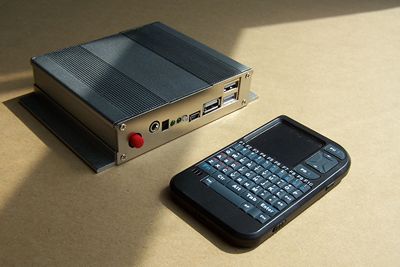

Mini Wireless keyboard (Model-01)

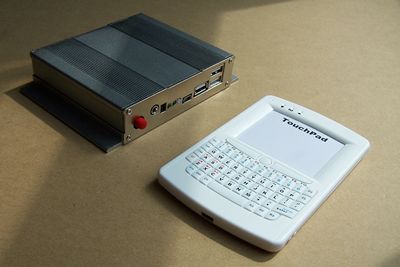

Mini Wireless keyboard (Model-02)

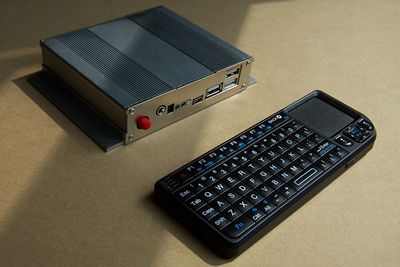

Mini Wireless keyboard (Model-03)
