Mader GXT Set Top Box

Mader GXT STB just likes a network DVD player,no need any video disc,playing video programs come from the hard disk of video server. Usually,Mader GXT STB has been used for hotel VOD system or home VOD system.

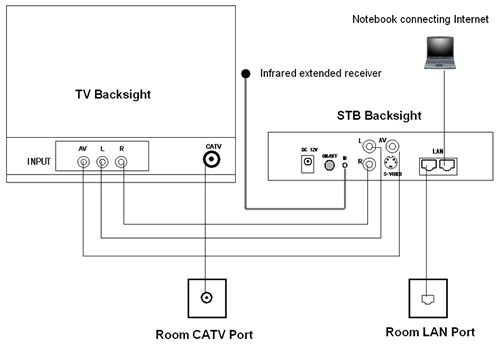

Mader GXT STB installation sketch map in hotel guest room as follow:

The feature of Mader GXT STB as follow:

Two LAN ports.
S-Video/Audio output
12V DC
IR port
STB remote control unit can control TV and STB at same time.
CPU:32bit 90Mhz
2M Flash Memory
OS: RTOS Nucleus
Supports Mpeg1/Mpeg2
Supports multi-language audio, multi-language subtitle.
Supports Mader VOD System.

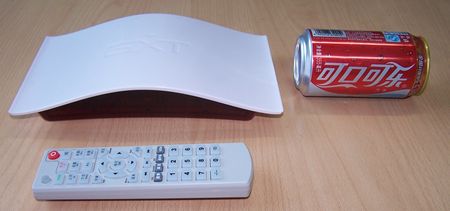

The picture of Mader GXT STB as follow:

24cm x 14cm x 5cm

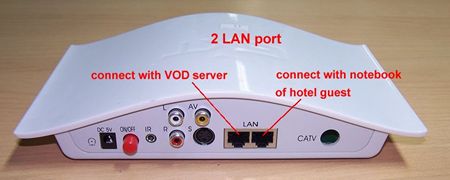

The backside of Mader GXT STB as follow:

The picture of remote control unit as follow:

STB remote control unit can learn codes from TV remote control unit,so STB remote control unit can control TV and STB at the same time.

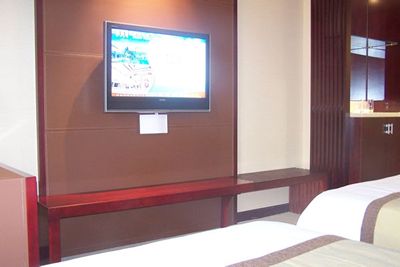

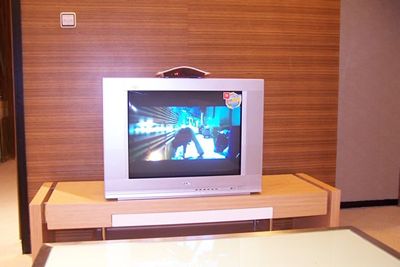

STB position in hotel guest room:
